High Intensity Range Light

Long Range Lighting Solutions

High Intensity Range Light
High Intensity Range LightHigh Intensity Range Light

High Intensity Range Light

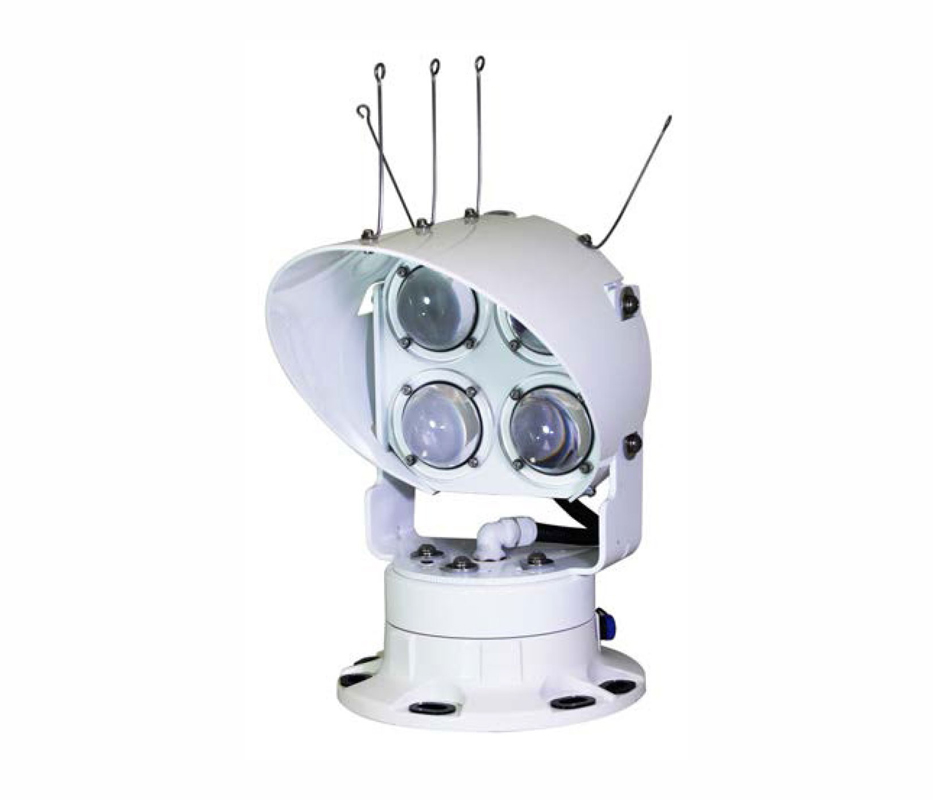

The Sealite SL-RL Series is a long range, high intensity range light designed to give vessels clear night and/or daytime navigation. A daytime range of over 5NM and a night-time range in excess of 23NM can be achieved.

Providing over 424,000cd, the Sealite Range light is highly efficient and ideal for solar power systems.

The Sealite Range light is extremely robust and of high-quality construction. The unit is built from CNC machined marine grade aluminium alloy, subject to 7-stage powder coating.

The range light comes with convenient PC programming and optional GPS Synchronization, Gsm monitoring and control and type 1 or type 3 AIS.

  • Provides over 424,000cd at a 3 ° x 3 ° divergence
  • Extremely robust and reliable – constructed of a high-quality, CNC-machined, 7-stage powder coated, marine-grade aluminium alloy
  • Advanced PC or IR Programming allows users to conveniently set up, diagnose and test.
  • Multiple and adjustable day/night & twilight intensity settings
  • Up to 310 customized flash characteristics and configurations
  • Low battery thresholds and alarm conditions
  • Ultra-low power consumption uses only 28.8W making it ideal for solar powered systems
  • Wide operating voltage ranges – Universal DC 10-30VDC or Universal AC 110-240VAC
  • GPS synchronization for coordinating multiple marine lanterns and other AtoNs
  • GSM for advanced remote monitoring and control of real-time data & testing, diagnostic data-logging, alarm thresholds and light settings
  • AIS (Type 1 or Type 3) both being low-powered and integrated systems
  • Internal or external photocell options
  • Optional solar powered configurations available

Specification Sheet: English | Spanish

Installation Manual: Download

Purchase Specifications: Download

Description

The Sealite SL-RL Series is a long range, high intensity range light designed to give vessels clear night and/or daytime navigation. A daytime range of over 5NM and a night-time range in excess of 23NM can be achieved.

Providing over 424,000cd, the Sealite Range light is highly efficient and ideal for solar power systems.

The Sealite Range light is extremely robust and of high-quality construction. The unit is built from CNC machined marine grade aluminium alloy, subject to 7-stage powder coating.

The range light comes with convenient PC programming and optional GPS Synchronization, Gsm monitoring and control and type 1 or type 3 AIS.

Features
  • Provides over 424,000cd at a 3 ° x 3 ° divergence
  • Extremely robust and reliable – constructed of a high-quality, CNC-machined, 7-stage powder coated, marine-grade aluminium alloy
  • Advanced PC or IR Programming allows users to conveniently set up, diagnose and test.
  • Multiple and adjustable day/night & twilight intensity settings
  • Up to 310 customized flash characteristics and configurations
  • Low battery thresholds and alarm conditions
  • Ultra-low power consumption uses only 28.8W making it ideal for solar powered systems
  • Wide operating voltage ranges – Universal DC 10-30VDC or Universal AC 110-240VAC
Options
  • GPS synchronization for coordinating multiple marine lanterns and other AtoNs
  • GSM for advanced remote monitoring and control of real-time data & testing, diagnostic data-logging, alarm thresholds and light settings
  • AIS (Type 1 or Type 3) both being low-powered and integrated systems
  • Internal or external photocell options
  • Optional solar powered configurations available
Downloads

Specification Sheet: English | Spanish

Installation Manual: Download

Purchase Specifications: Download
