5 Degree Port Entry Light
5 Degree Port Entry Light

5 Degree Port Entry Light

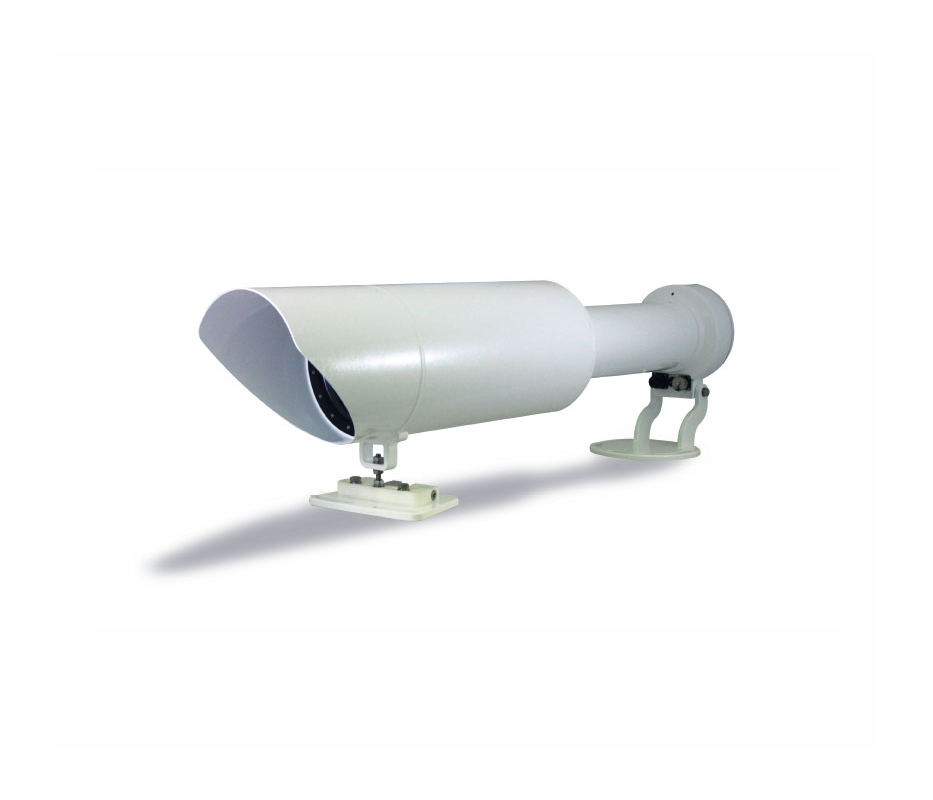

The Sealite 5 degree LED port entry light (PEL) is a low powered, high-intensity precision sector light, suitable for day or night time use. Providing over 500,000cd at 30watts, the Sealite PEL is extraordinarily efficient and ideal for solar power systems.

The PEL has a visible daytime range of over 5NM and is designed to suit high-precision sector applications and provides a measured changeover between color sectors of typically one minute of arc.

The Sealite PEL is extremely robust and of high-quality construction and with its compact design it removes the need for split assemblies and realignment on difficult access sites.

The Port entry light can be configured to suit many channel marking and leading line applications. Independently controlled LED drivers provide balanced color output across colors, or the white center sector can be increased in intensity to simulate filament/filter combinations. The PEL comes with convenient PC programming via USB, ready for interfacing with Sealite Type 1 or Type 3 AIS solutions and GSM monitoring facilities through a cell-phone.
The Port Entry Light does not require focusing or re-lamping while in service, and there are no moving parts.

Product Code: SL-PEL-5
  • Stationary intensity of up to 500,000cd (white) with a night-time visible range of up to 23.9NM
  • Over 5NM visible day-time range
  • High precision light sectoring – measured changeover between color sectors of typically one minute of arc
  • Low power consumption – uses 30 watts to achieve intensities that previously required 250 watts, making solar power feasible
  • LEDs can be configured for automatic night dimming, eliminating the need for moving filters
  • LEDs can be individually flashed to reduce the need to employ moving oscillating boundaries
  • Ultra-compact design, removing the need for split-assemblies & realignment on difficult access sites
  • Operates on 12-24VDC battery supply – no need for large cables
  • Extremely robust & of high quality construction
  • Convenient PC Programming via USB
  • Multiple configurations & maintenance-free
  • Type 1 or Type 3 AIS class leading & low-powered
  • GSM remote monitoring & control capabilities
  • GPS enables reliable flash synchronization with multiple units & other AtoNs
  • Hard-wired or GPS synchronization to omnidirectional Sealite lanterns
  • Quality Assurance: ISO9001:2015
  • IALA: signal colors compliant to IALA E-200-1
  • Waterproof: IP67

Specification Sheet: English | Spanish

Installation Manual: English | Spanish

GSM Monitoring Manual: Download

Purchase Specifications: Download

Port Entry Light (PEL) Checklist: Download
